FOX 2.5 Suspension Kit - Stage 2 / 10-24 4Runner + 10-23 GX460
If it isn't broke, don't fix it. Fox has been making high performance suspension for quite a long time now. There's a reason it's still around. It's comfortable and it does it's job well. We put together this FOX 2.5 suspension kit to be a great value for those looking for higher performance suspension on more of a budget.
Fox 2.5 shocks are progressively valved, meaning the initial impact is softer, with the shock getting stiffer the further it compresses. The 2.5 in diamater shock bodies on the front coilovers provide more consistent dampening and provide better control for trucks with a lot of accessory weight. This does a few things;
- Provides a more comfortable on-road ride.
- Provides more high speed comfort and handling
This kit is perfect for whatever terrain you throw at it. It excels at higher speeds, like on the beach, sand dunes, forest service roads, and in the desert.
Stage 2 adds remote reservoirs to the rear shocks, allowing for more travel and better cooling.

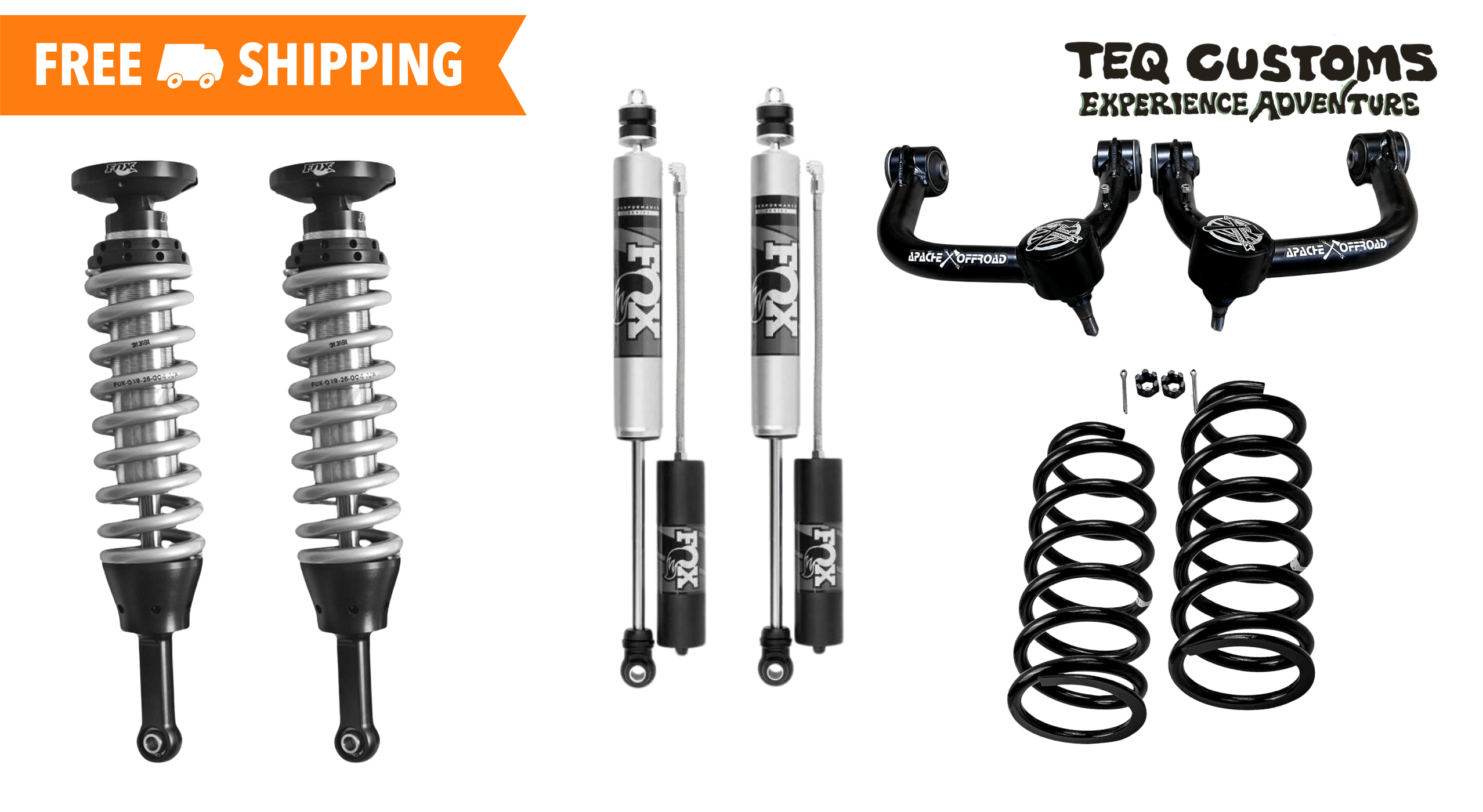

Kit Includes..
- 2x Fox 2.5 Front Coilovers, adjustable up to 3in of lift
- 2x Fox 2.0 Rear Shocks w/ Remote Reservoirs
Option to add a rear suspension lift
- Choose from a selection of Dobinsons Rear Coils. We chose the Dobinsons coils to pair with this kit due to the coil design closely matching the valving of the shocks. This provides a better ride and better performance.
Aftermarket UCAs are REQUIRED with all Fox 2.5 Suspension kits to prevent the Upper Control Arm from hitting the coilover. By selecting no UCA, you are acknowledging that you either have aftermarket UCAs already or will purchase them from another source.
Recommended Lift Heights
This kit has adjustable front coilovers, allowing the front height to be adjusted at any time. However, some general height recommendations are;
For a leveled look
- Lift the front about 1in MORE than the rear. Ex: 2.5in Front, 1.5in rear lift
To maintain factory rake
- Lift the Front the same amount as the rear. Ex: 2in front, 2in rear
You can also do half an inch less in the rear - for example 2.5 front and 2in rear, to maintain a little bit of rake. This is helpful if you load down the trunk frequently.
Vehicle Fitment
- 2010-2024 4Runner 5th Gen
- 2010-2023 Lexus GX460
Coil Conversion will be required to run rear coils on GX460 models with factory rear air suspension.
A very common question when deciding on your suspension is which spring is going to work best. Ultimately, it depends on the height you want, what extra weight you have, if any, and how you want the vehicle to ride.
Factory Ride Heights
Before you can calculate how much lift you need, it is very important to understand how lift heights are measured and how the factory Toyota suspension sits.
Lift heights from all major manufactures are going to be measured from a new, unmodified 4x4 vehicle unless otherwise noted.
Suspension for trucks will be measured off of a Crew Cab, Short Bed configuration.
Vehicles that had an option for a 4 cylinder or 6 cylinder engine will have the heights measured on the V6 version unless otherwise noted. For newer vehicles with optional hybrid powertrains, any differences in weight will be noted on the lift kit.
**Note: For 4th Gen 4Runners (03-09) that had the optional V8 engine, coils will be noted with a V6 lift height and a V8 lift height.
This information is vital if you have a 4x2, a smaller engine, an access cab or long bed truck, as these will change the weight of the springs you need. In general:
- 4x2 vehicles gain about an inch more lift in the front than a 4x4 would with the same coil spring. If you installed the same spring on both, it will feel stiffer on a 4x2 than a 4x4 due to the lower weight.
- 4 cylinder engines typically gain about an inch more lift in the front verses a 6 Cylinder engine. Again, coils will feel stiffer on a 4cyl vehicle.
- A smaller cab, like an access cab, will not affect the front weight - it will affect the rear. An access cab will gain about .5 of lift more than a double cab.
- A long bed will typically decrease the rear lift height by .5in. Rear leaf springs will also feel softer with a long bed due to the extra weight.
Finally, Toyota Trucks and SUVs come from the factory with suspension rake, which means that the rear sits higher than the front. The purpose of the rake is to allow the suspension room to compress for loading up the rear of the vehicle with cargo or passengers.
The amount of rake varies, but generally;
- Toyota SUVs sit about 1 inch higher in the rear from the factory
- Toyota Trucks sit about 2 inches higher in the rear from the factory
Choosing Your Lift Height
Now, let's talk heights. We'll get to weights in a moment. The mentioned heights are going off of the assumptions mentioned above - measured from an unmodified, 4x4 V6, Double Cab Short Bed truck or an unmodified 4x4 V6 4Runner.
**Note: Older vehicles may have sagging suspension. Do not include that in your lift height calculations. Your springs will be new and un-saggy :)
Leveled
The most common choice is to level the vehicle. Based off what we now know about the stock suspension, to completely level the vehicle we would need to..
- Lift the front of an SUV 1 inch higher than the rear. Ex: 2inch front lift, 1inch rear lift (shown below)
- Lift the front of a truck 2 inches higher than the rear. Ex: 3in front lift, 1in rear lift (shown below)
We highly recommend to leave a little bit of rake in the suspension for adding occasional cargo. To maintain a slight bit of rake, you would want to...
- Lift the front of an SUV .5 inches higher than the rear. Ex: 2.5in front lift, 2in rear (shown below)
- Lift the front of a truck 1 inch higher than the rear. Ex: 3in front lift, 2in rear lift
Maintain Factory Rake
The other common option for lift heights is to maintain the factory rake. This is easily done by matching the front and rear lift heights. An example is shown below.
Choosing the Right Spring Rates
- About 50-70lbs for a LoPro Style front bumper that only replaces the center section of your front bumper
- About 100-150lbs for a full size front bumper (Check your manufactures website for exact weight)
- About 80-100lbs for a winch.
You will typically want a coil for..
- No extra weight with just a LoPro bumper and no winch. It is not enough weight to justify a heavier coil
- About 150 extra lbs for a LoPro bumper and a winch
- About 150 extra lbs of accessory weight for a full front bumper and no winch.
- About 220-250 extra lbs for a full front bumper and winch.
In the rear, most additional weight is going to come from a rear bumper, swingouts, tire carriers, drawer systems, bed racks and tents on trucks, bed camper shells, and any hard mounted gear (for example a Hi-lift jack or jerry cans).
Weights for these items vary quite a bit based on your bumper, any included bumper swingouts, the size of your tire, and your brand of drawer system.
The manufacturers of these items should have weight specs published to get a general number. Don't stress- a general number is completely fine to work with. Your vehicle is not going to ride terribly if you're 50lbs off.
Towing
Unless you will be towing daily, we do not recommend using your springs to compensate for sag when towing. Stiffer coils will kill the ride quality when you are not towing. Helper air bags are a cheap, easy to install way to keep the truck from sagging while towing and not degrade your ride quality.
We hope this article was helpful! If you have any questions about setting up suspension for your vehicle, give us a shout and we'd be happy to help. We have plenty of parts for any application!
