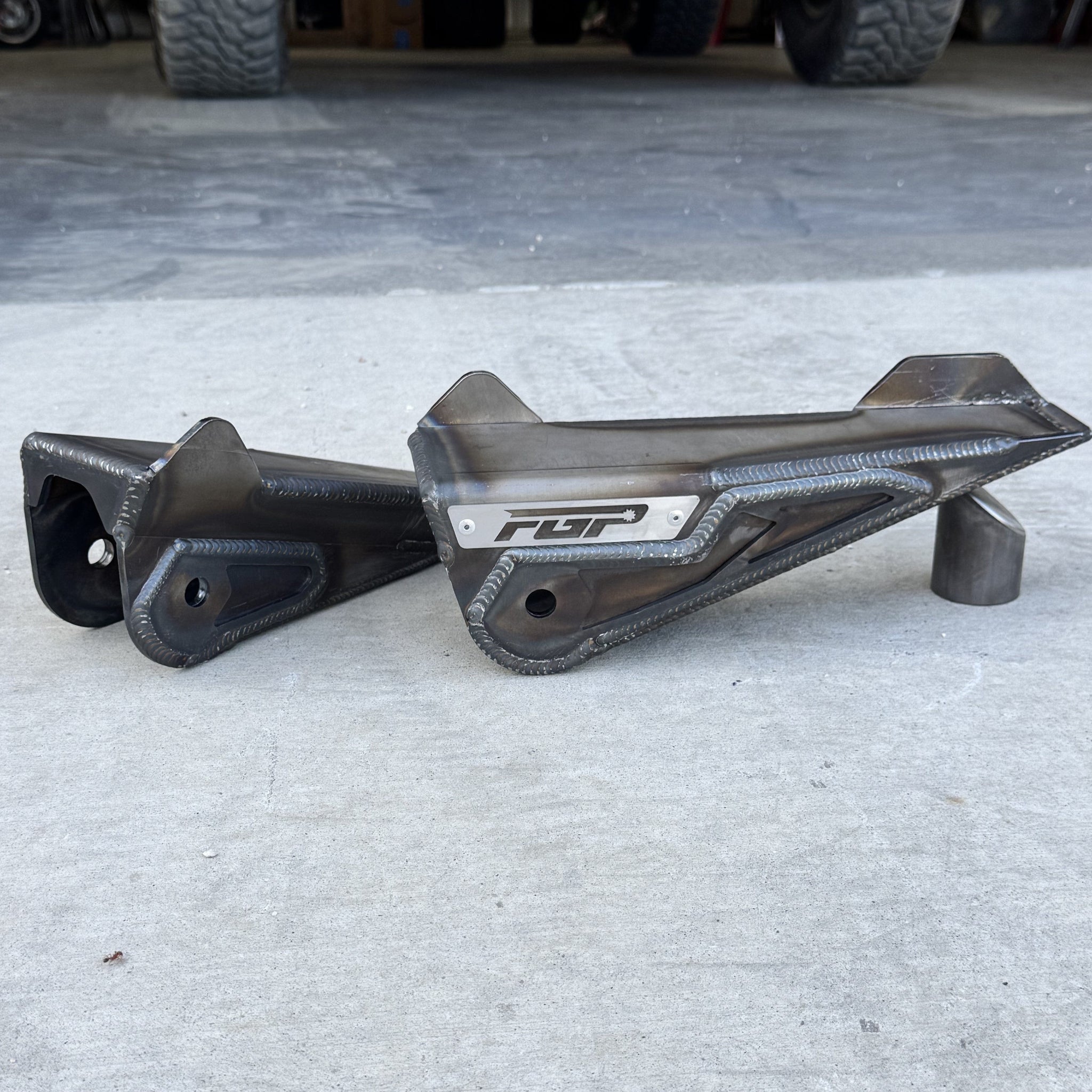

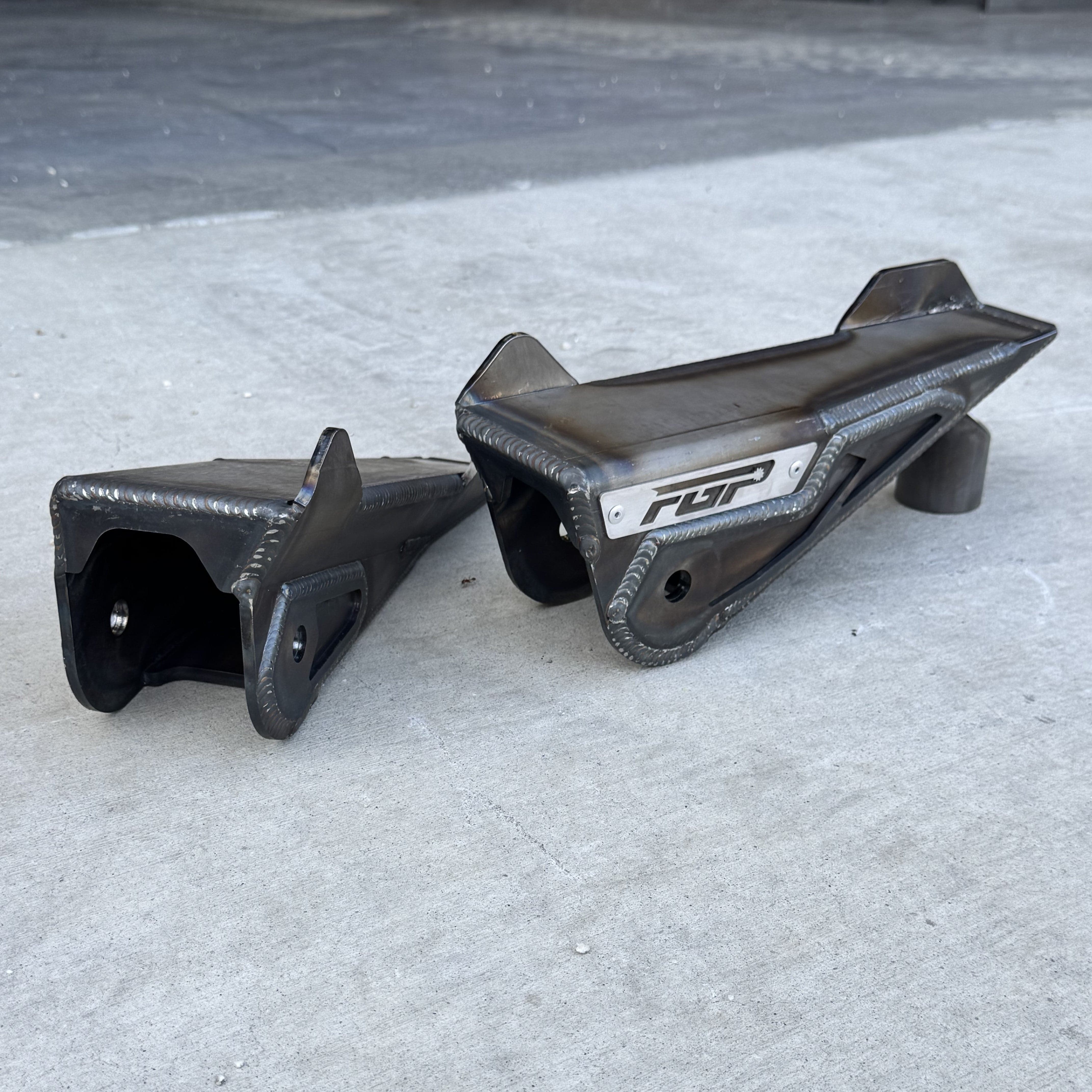

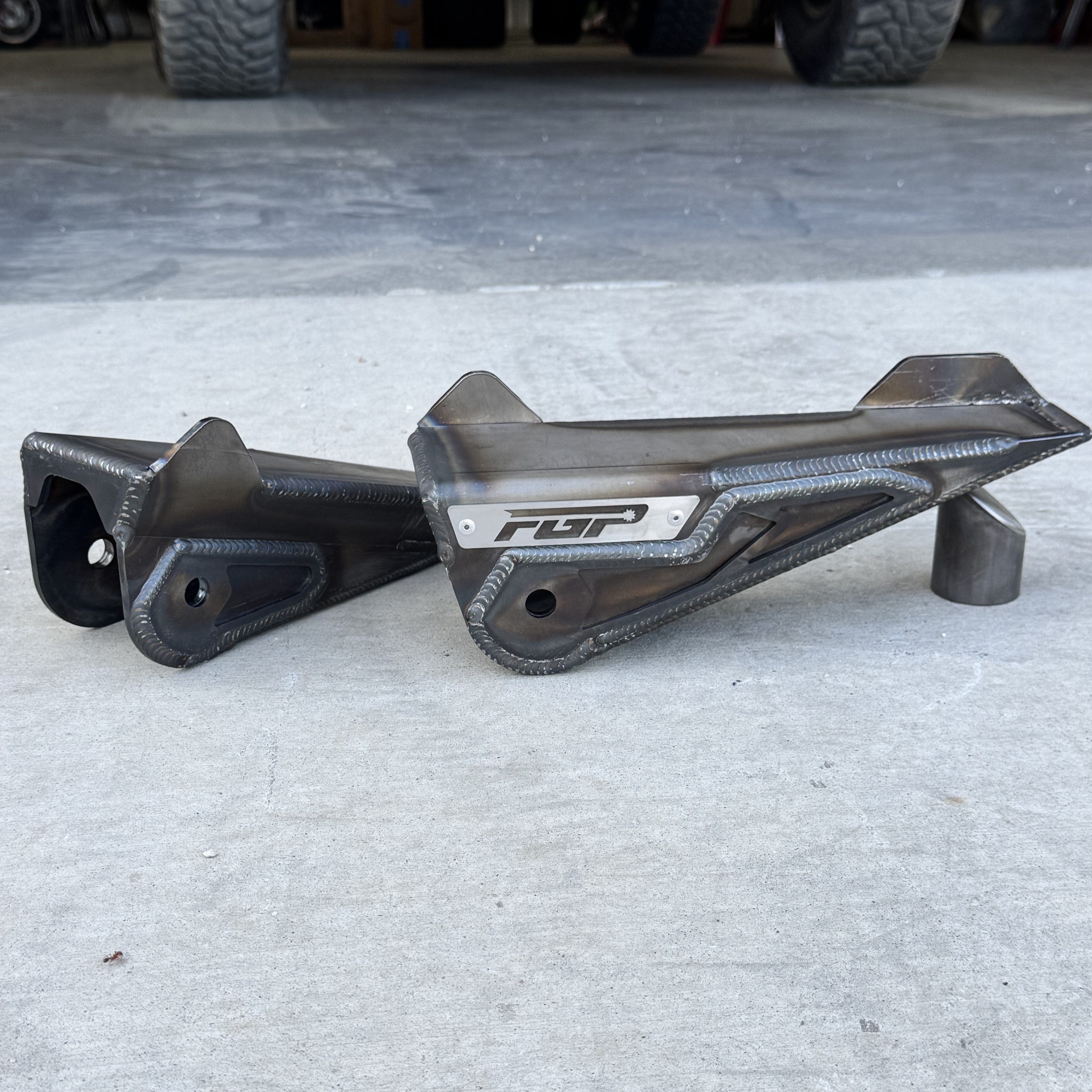

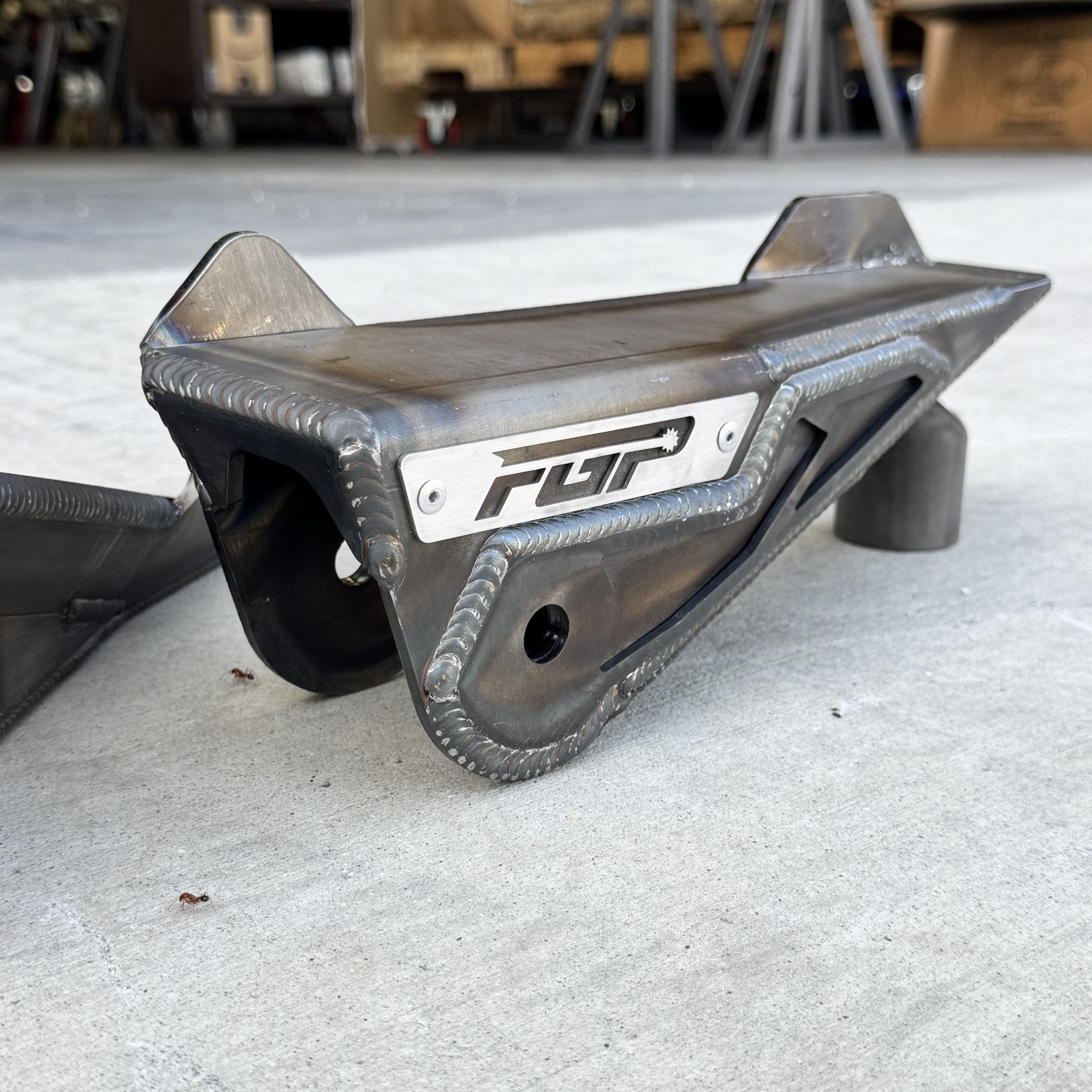

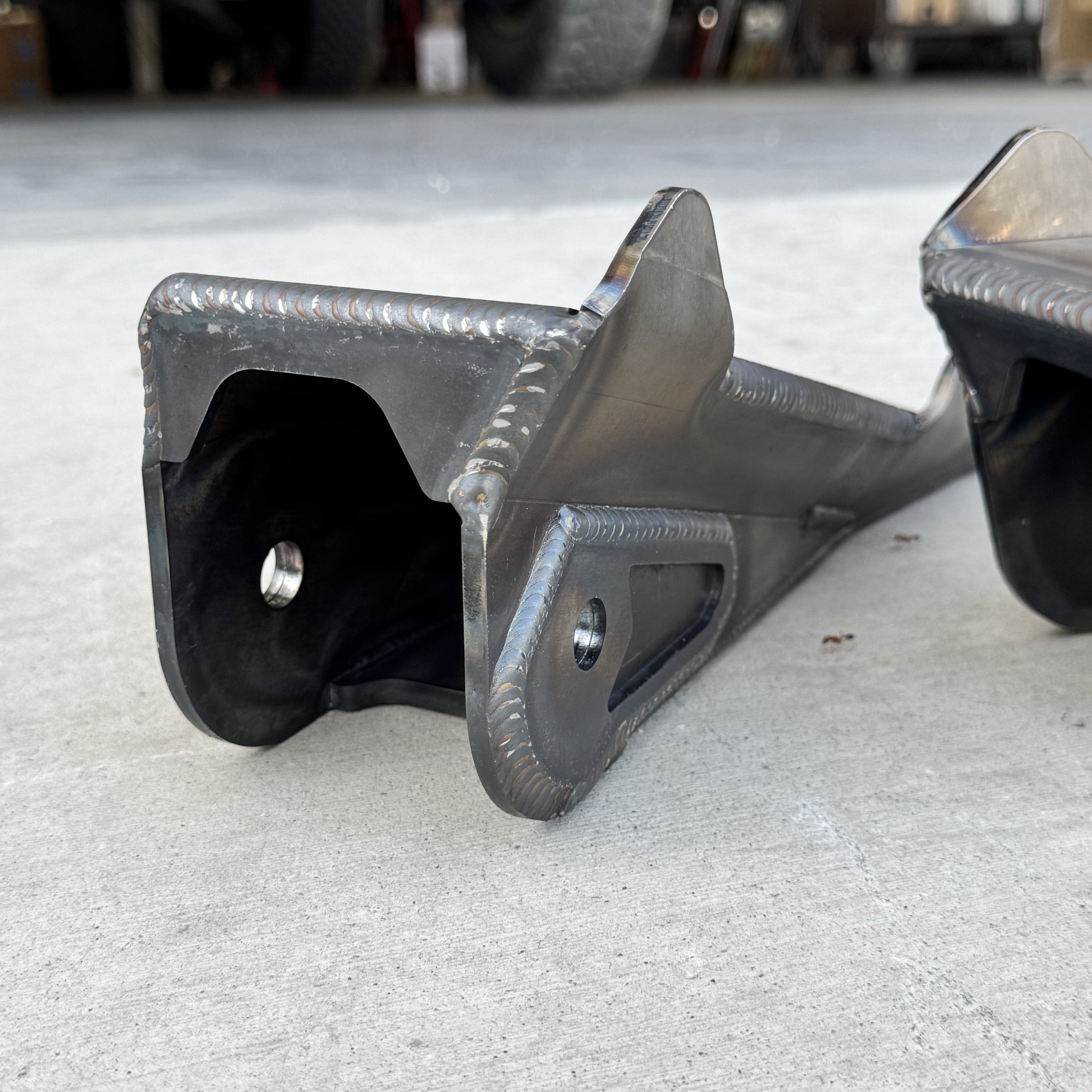

Universal Lower Link Mounts

Universal link mounts designed to take a beating and look d**m good doing it. Inspired by the FGP LT3 vehicle specific mounts with DIY in mind at a fraction of the price. These ship fully welded and ready for install.

Details:

• Main body is constructed of CNC laser cut 3/16" steel with 1/8" fishplating (meaning 5/16" total side wall thickness), bottom plate is a hefty 1/4" thick
• Fits a standard 2.625" joint/heim mounting width and 9/16" bolts (drilling required for 5/8" bolts)

• .75" outward offset on inner plate to leave room for hardware
• 3.25" wide, 13" long mounting surface
• 2.25" from mounting surface to eyelet (<Important info for link calculations)
• Welded

Note: This is a universal, non chassis specific, item.

Need axle mounts too? Check out our bomb proof Universal Axle Link Mounts

Current Estimated Lead Time: 3-6 weeks.

Lead times are subject to change depending on order volume. We will do our best to estimate and update the site regularly. As this is a "made to order" item, all sales are final.
