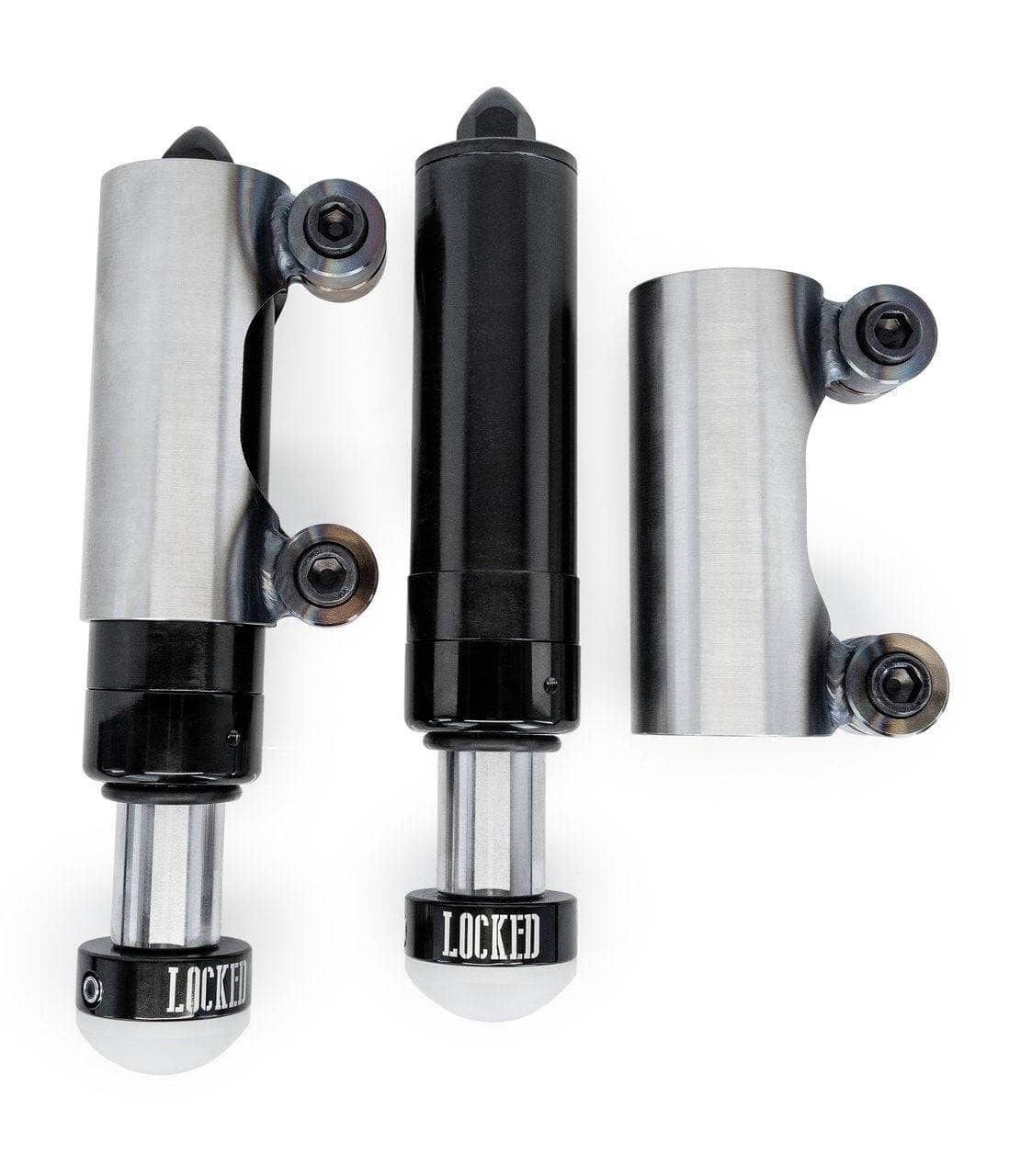

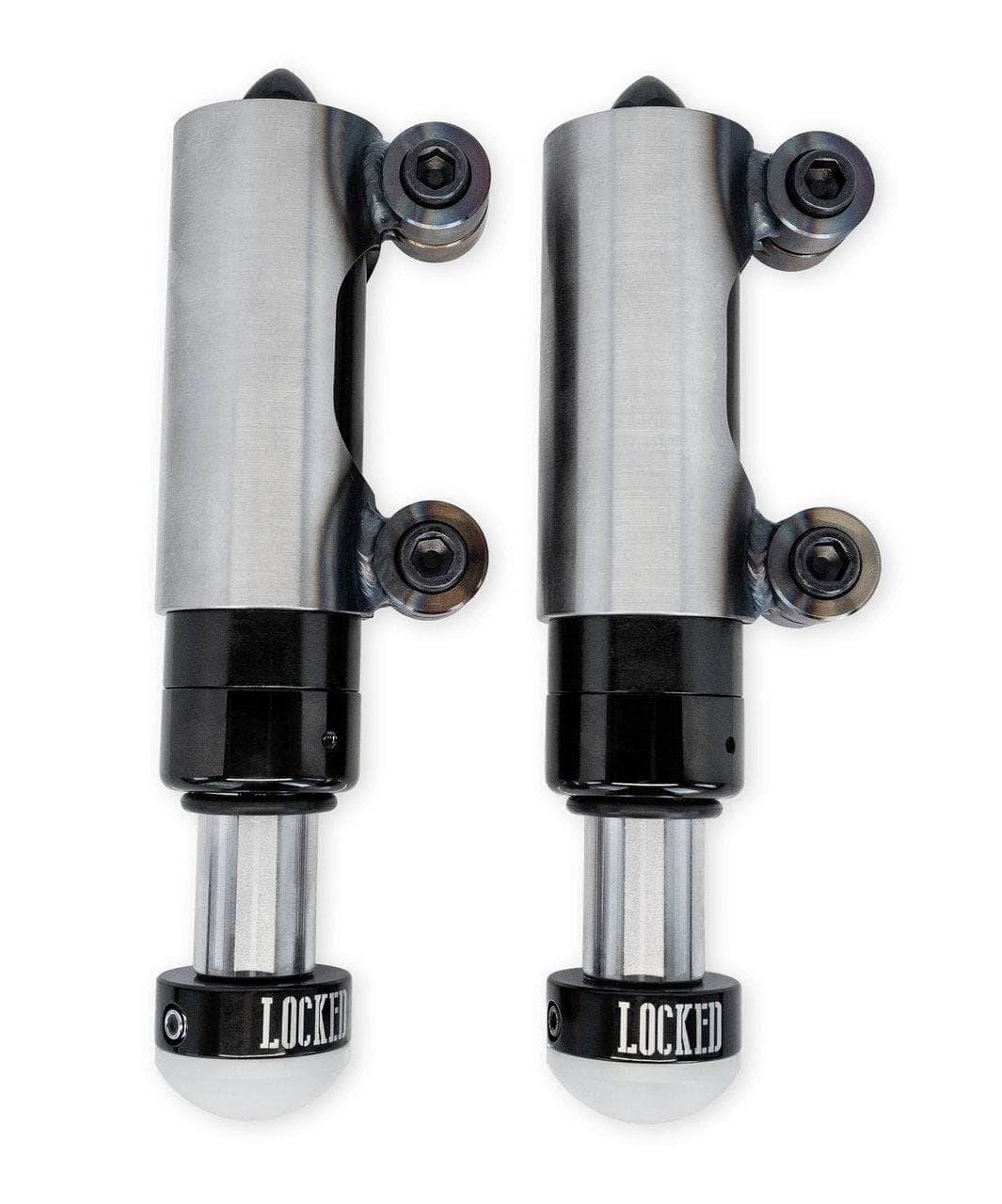

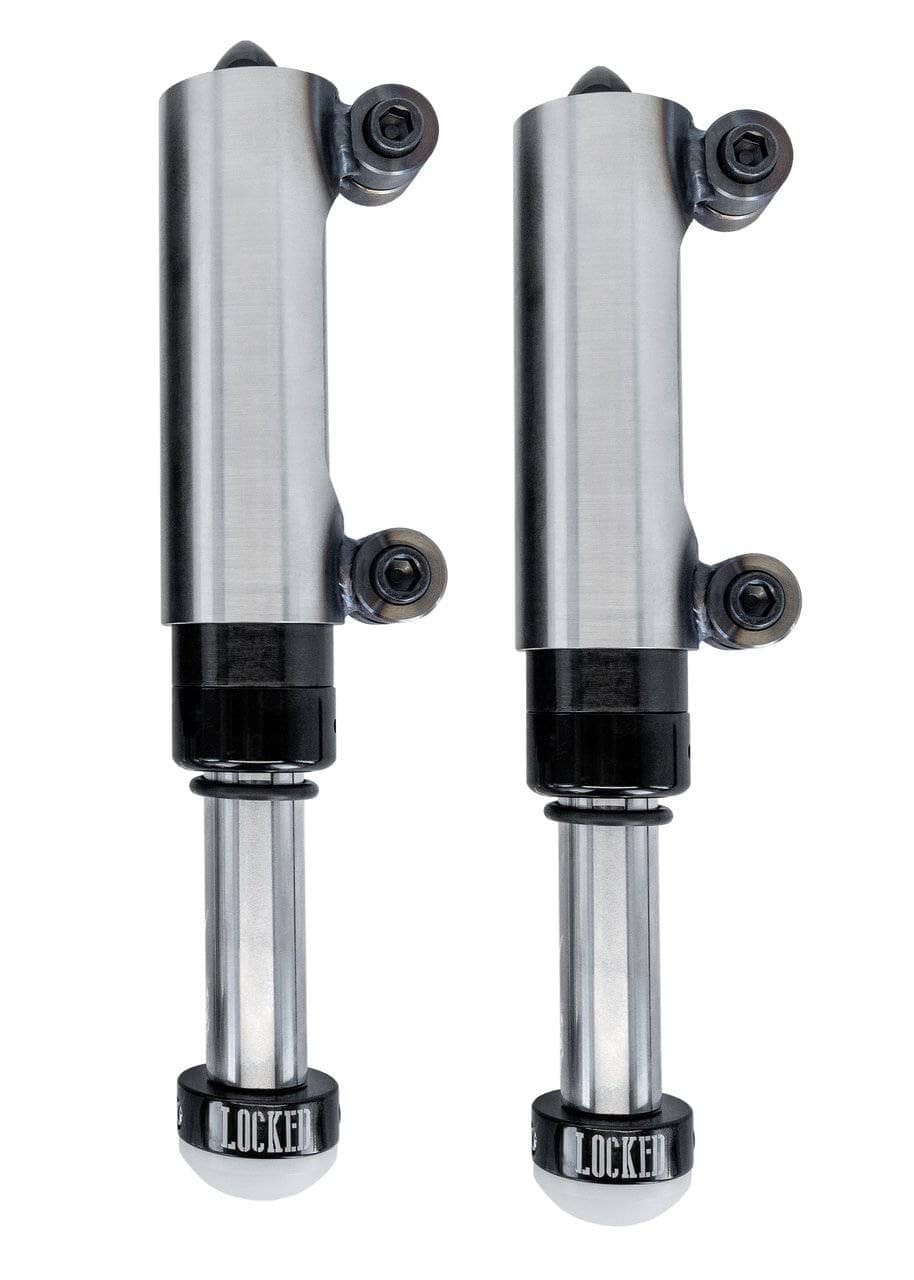

2.0" Bump Stop Kit | Pinch

PAIR OF 2.0" BUMP STOPS – 2" & 4" TRAVEL OPTIONS

• Hydraulic bump stops
• Fully rebuildable
• Adjustable oil volume & nitrogen pressure
• Includes heavy-duty mounting sleeves

TECHNICAL SPECS:

• 2.0" Diameter Body
• 2" Stroke: Extended 11.25" | Collapsed 9.25"
• 4" Stroke: Extended 14.875" | Collapsed 10.87"
• 1.26" Diameter Shafts — Hard-chromed and mirror-polished for durability and extended seal life
• Schrader cap mounts directly to the body, not the valve, for a stronger, cleaner seal
• O-ring travel indicator tracks shaft travel in real-time
• Delrin contact pad with flushmount design prevents metal-on-metal contact and ensures silent performance

MOUNTING SLEEVES:

• Heavy-duty sleeves, weld-ready
• Can OD: 2.34" (side to side) × 3.5" (front to back)
• Built-in weld shrinkage tolerance ensures a proper fit during installation

BUILT TO PERFORM:

• Viton Seals
• 4130 Chromed & Polished Shafts
• Black Zinc-Coated Steel Bodies
• 6061 Anodized Aluminum Components

WARRANTY:

2-Year Warranty on non-wearable parts.

NOTE:

Intended for off-highway use only.
