1-2.5in MRR Complete Lift Kit / 4th Gen 4Runner (03-09) / Dobinsons
For those looking for exceptional performance and reliability for their vehicles, look no further than the Dobinsons MRR
**Please Note: Certain coils may be out of stock in certain colors. If there are any stock issues with the coil color selected, we will reach out with more information. Please feel free to inquire about certain coils in certain colors at any time.**
- All rear heights are measured on a vehicle with 3rd row seating
- 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
- 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
- 20 Stage Low Speed Compression - For creepy crawling and cornering
- 15 Stage Rebound - Control your coils, prevent bucking
- 50mm CNC Machined High Flow Billet Aluminium Race Piston
- 3mm Thick Heavy Duty DOM Seamless 56mm O.D. shock Body Precision Honed to +/- 0.04mm
- Upgraded 3 Stage FKM‐HNBR Sealing System
- TSUGAMITM CNC machined components for precise tolerances
- ParkerTM Braided High Pressure Hoses
- 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
- T6 6061 Height Adjustable Spring Seat
- Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low‐wear performance
- 60mm Full 6063 aluminum remote reservoir
- Lightweight CNC Machined Low Friction floating piston
- High Quality O.E.M. Grade Natural Rubber Bushings
- Single Piece Lower Leg
- EDP Surface Protection
- Direct Bolt-On Design
- CNC TIG Precision Welded Body End Mounts
- Fully Rebuildable Design

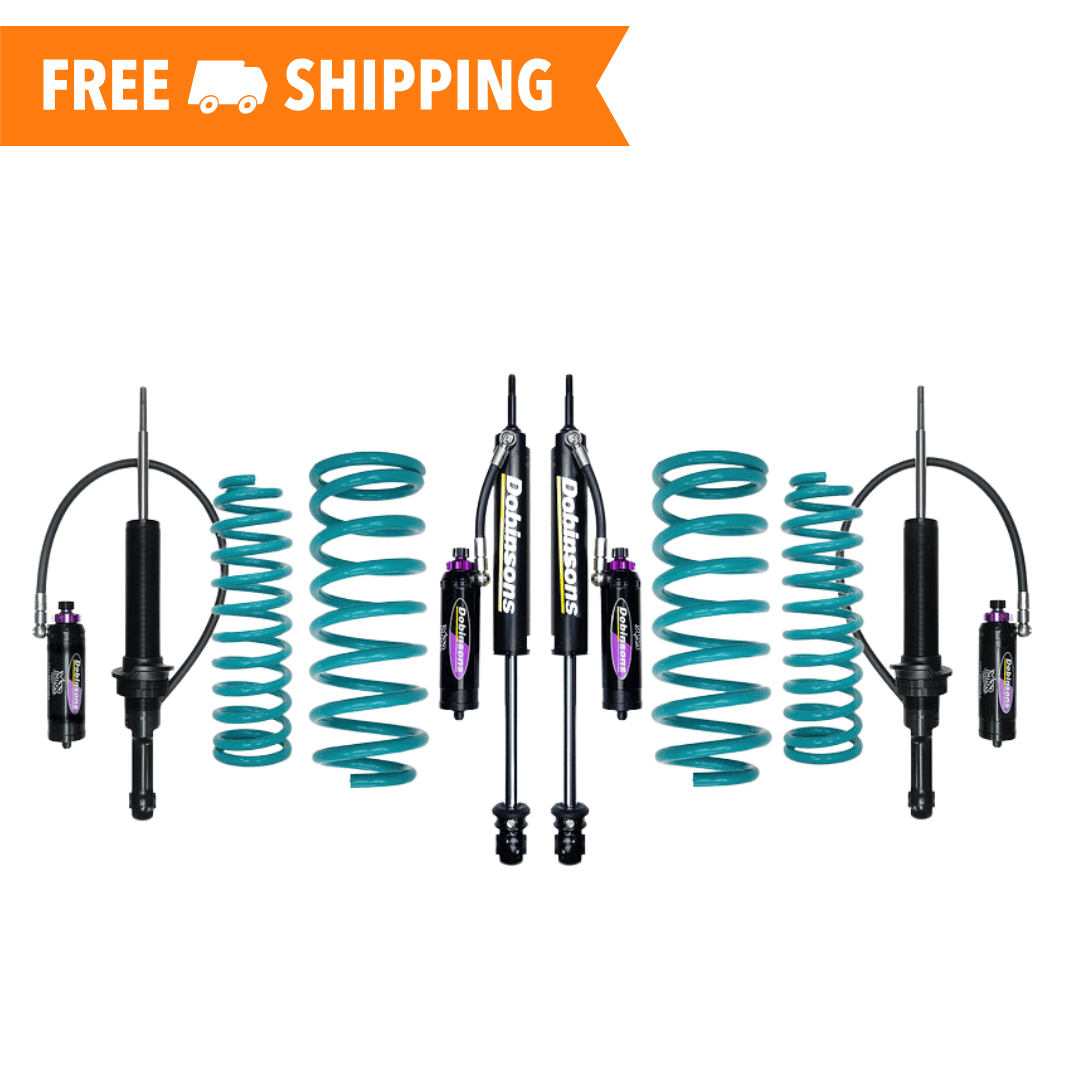

- Includes 2 Front MRR Struts, 2 Rear MRR Shocks and 4 Coil Springs.
- ***2.5" or more of lift, new UCA's are recommended***
****Coil seat for MRA59-A700 should be set at 213mm(8.38") and MRA59-A574 should be set at 226mm(8.89") from the strut bushing eye. Picture black and white on the listing is to reference how to measure. Please check our instructions section or reach out if you have any questions. If done incorrectly you can damage the shocks, springs and vehicle.*****
--
Dobinsons is one of our favorite suspension brands we offer here at TEQ Customs. We install tons of Dobinsons kits at our shop and run Dobinsons on our own vehicles as well.
There's a few reasons we're big fans.
1) It's very reliable.
2) A 2 year, unimited milage warranty is standard.
3) It's a great value for the price.
4) The valving provides a very nice all around ride.
5) Dobinsons offers a ton of coil options so you can easily find the perfect coil for your needs.
Dobinsons has been in the industry since 1953 with a fanstic track record for high quality products. We are one of the United States largest Dobinsons dealers because we believe in the product, quality and service that Dobinsons offers.
If you have questions about a Dobinsons suspension setup for your vehicle, you can schedule a call with us using the icon in the bottom left of your screen, or send us an email at info@teqcustoms.com!
