Archive Garage Explorer Series "ERIKSON" Tacoma Lift Leaf Springs Tacoma 2005-2023

Archive Garage

$960.00
TEQ (2556 x 777 px) (60).png__PID:4fcb08f3-90e6-42f1-bc2c-b5bf61d4d077
TEQ (2556 x 777 px) (52).png__PID:4d6e0432-e057-46d1-ac78-24918206ef41shopify-secure-badge-dark.svg__PID:0922c4ce-8c1c-4f57-a533-8a2823994e22

Product Information

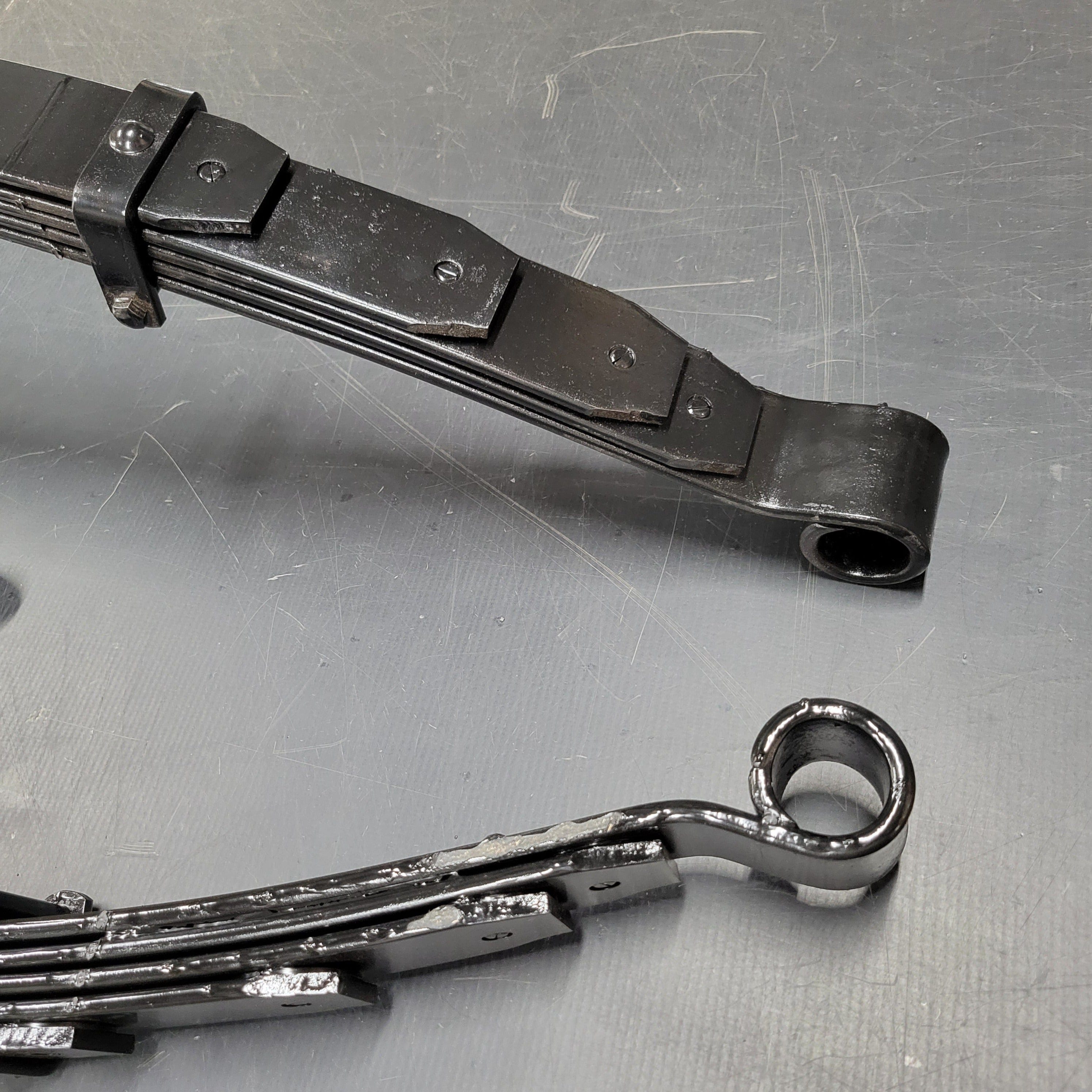

Archive Explorer Series Tacoma leaf packs are designed for severe duty off road travel. Made in USA with 5160 steel, tip insert pads, full military wrap yet won't scrape hanger, bolted spring clips, and high quality poly bushings included in price. Carefully designed to NOT have interference issues that are so common with aftermarket springs in the Tacoma market. Get your perfect spring rate by following our Archive Method Here.

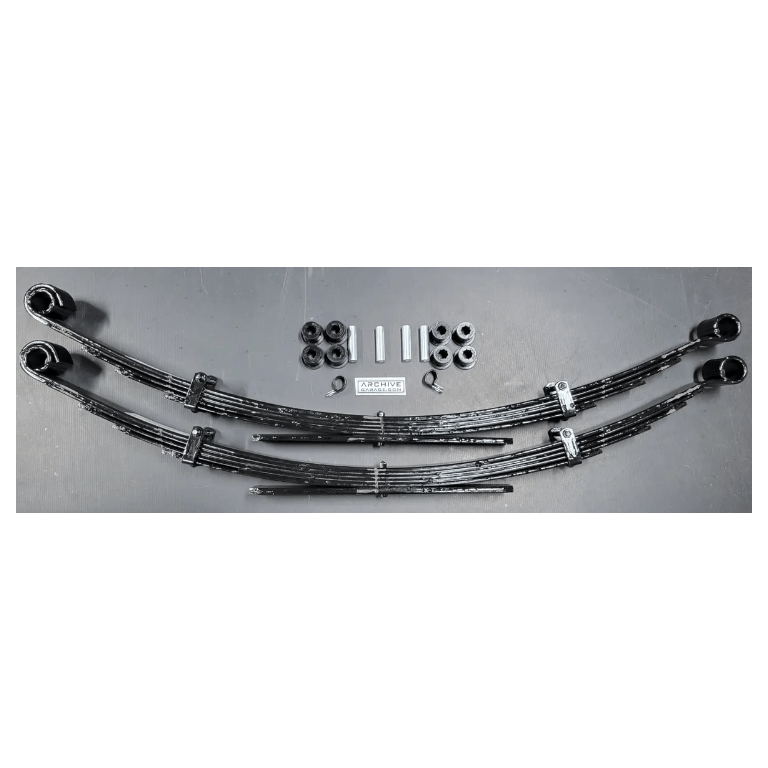

Quantity of 1 is for a PAIR of leaf springs and includes high quality bushings and sleeves.  U-bolts (not included) available here:  Square OE Style U-bolts or  Round U-bolt flip style

Wheel Fitment Needed
Wheel Backspacing
4.75" + 1.25in Spacer or Equivlent Out Board
Shock Specs Needed
2.5" & 3.0" Smooth Body Shock Remote Resi
Shock Travel Fittings/Spacers
12-14in

Standard rod-end shocks (1.5" wide, 1/2" bolt)
2005-2023 Tacoma DC/SB
Leaf Pack Estimated Lift Amount AG Leafs Axle-Tube-to-Frame-Bottom
Stock 3/1-stock weight 0in 8.25in
Archive MD - 0lbs 3.25in 11.5in
Archive MD - 300lbs 2.5in 10.75in
Archive MD - 600lbs 2in 10.25in
Archive HD - 600lbs 3in 11.25in
Archive HD - 1250lbs 2in 10.25in
Archive XD - 1250lbs 3in 11.25in
Archive XD - 1750lbs 2.5in

10.75in
