FOX 2.0 Suspension Kit - Stage 1 / 05-23 Tacoma

If it isn't broke, don't fix it. Fox has been making high performance suspension for quite a long time now. There's a reason it's still around. It's comfortable and it does it's job well. We put together this FOX 2.0 suspension kit to be a great value for those looking for higher performance suspension on more of a budget.

Fox 2.0 shocks are progressively valved, meaning the initial impact is softer, with the shock getting stiffer the further it compresses. This does a few things;

• Provides a more comfortable on-road ride.
• Provides more high speed comfort and handling

This kit is perfect for driving on forest service roads, the beach, on the sand dunes or in the desert. For slow speed crawling, better control can be found from an alternative, like a custom valved Radflo setup, Dobinsons IMS kit, or the Fox DSC Adjustable shocks.

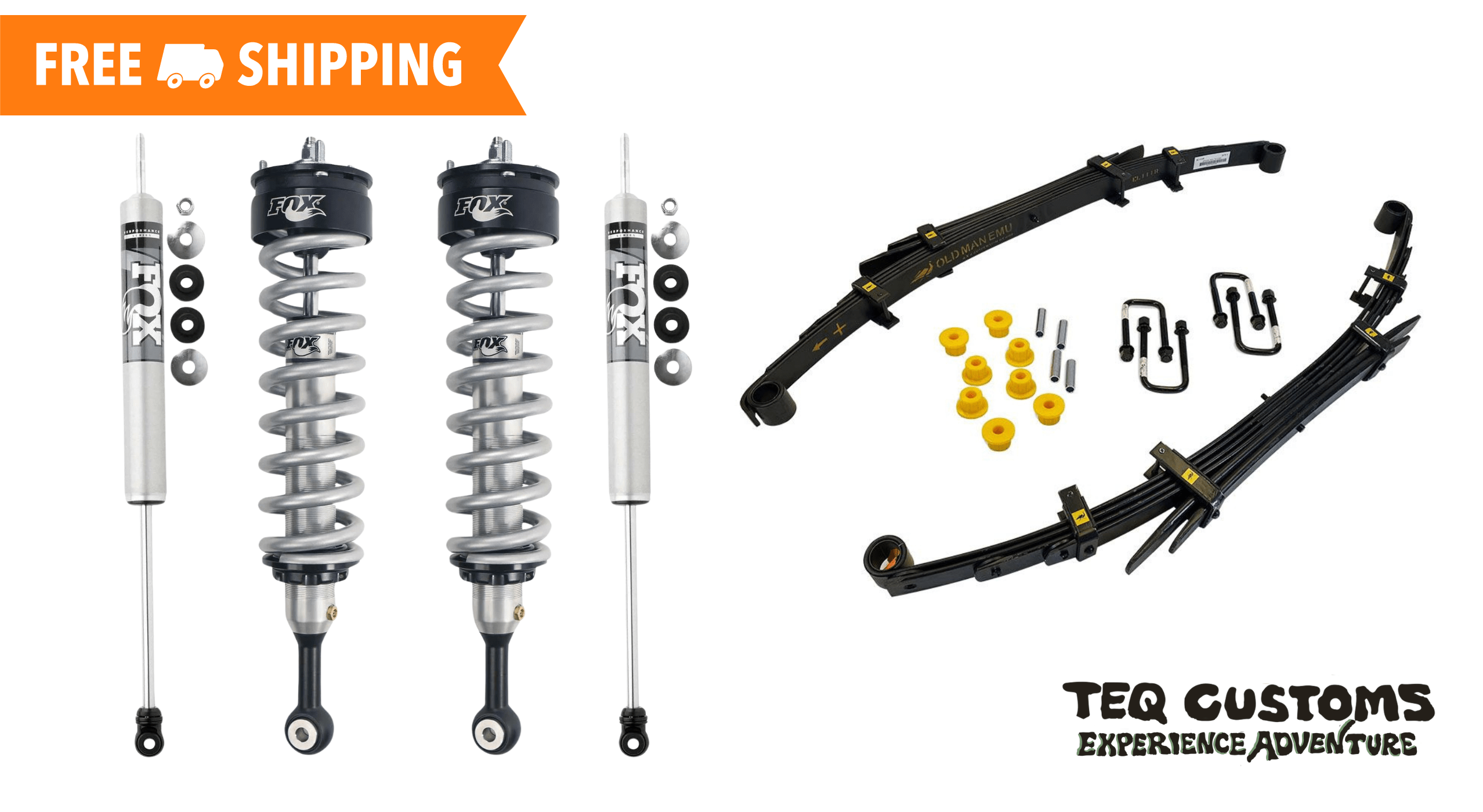

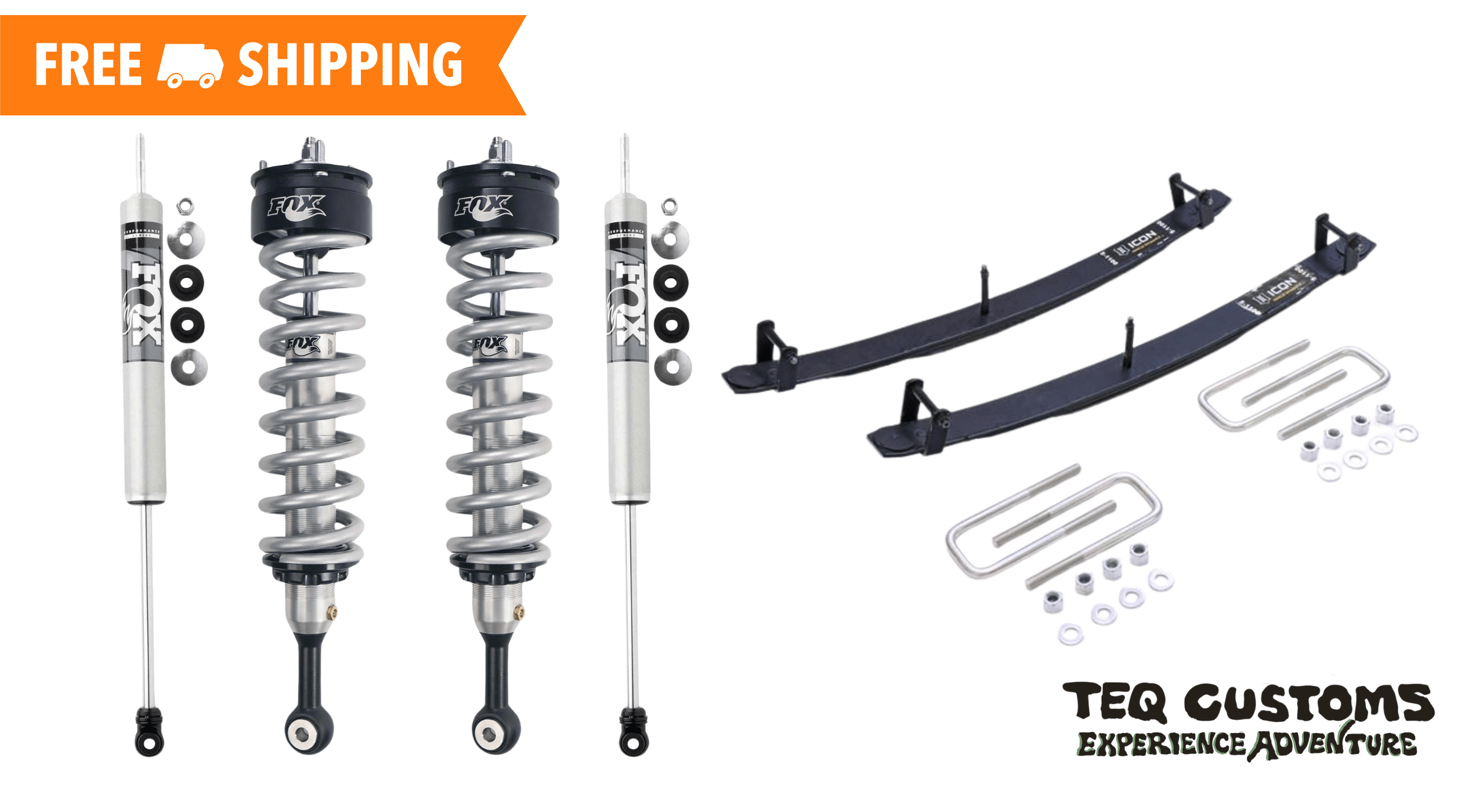

Kit Includes..

• 2x Fox 2.0 Front Coilovers, adjustable up to 3in of lift (2WD) / 2in Lift (4WD)
• 2x Fox 2.0 Rear Shocks

Option to add a rear suspension lift

• Icon Add a Leaf (Provides 1.5in Lift)
• Old Man Emu Leaf Springs (2.25in of Lift)

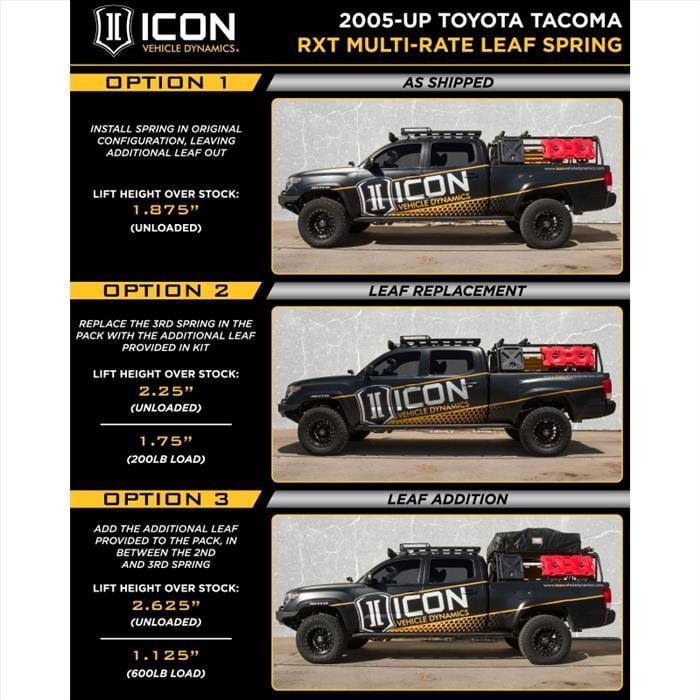

• Icon RXT Leaf Springs (1.875in Lift to 2.625in Lift)

All Rear Lift Options include any needed bushings and U bolts.

Upper Control Arms will be required to obtain an in-spec alignment at a lift height of 2.5 inches or higher.

Recommended Lift Heights

This kit has adjustable front coilovers, allowing the front height to be adjusted at any time. However, some general height recommendations are;

For a leveled look

• Lift the front about 1.5in MORE than the rear. Ex: 2in Front, 1in rear lift

To maintain factory rake

• Lift the Front the same amount as the rear. Ex: 2in front, 2in rear

**Maintaining some factory rake is recommended if you plan to tow or haul with your truck.

Vehicle Fitment

• 2005-2023 Toyota Tacoma
• 6 Lug Models Only

**Rear leaf pack lift heights are based off a Crew Cab, short bed configuration. Crew Cab long bed models will achieve .75-1in less rear lift than stated. Access Cab models will gain .75-1in more lift than stated.
